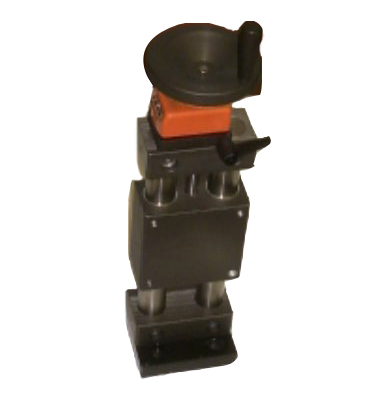

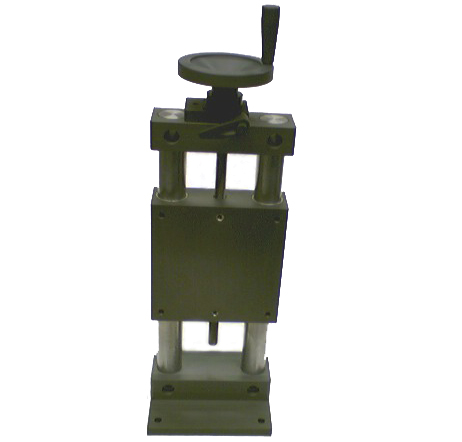

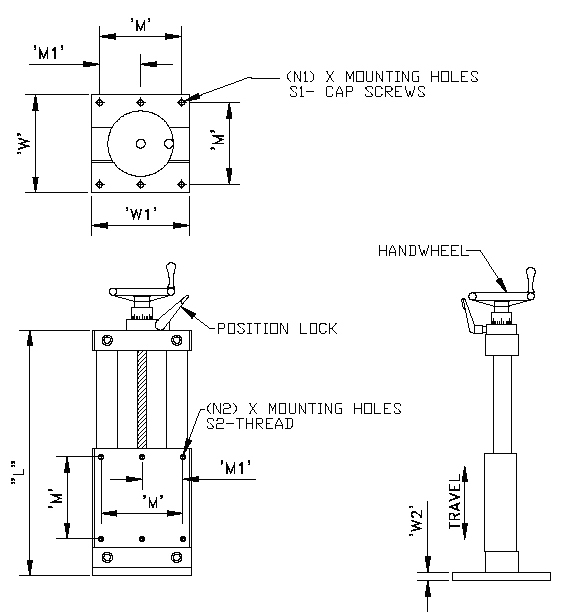

These linear positioning slides provide smooth, repeatable, z-axis positioning, of instrumentation, tooling, and equipment via a rigid slide mounting
arrangement. The extremely robust construction, including oversized
guide rails and high PV bearings allow mounting in an extended
vertical position. These slides also allow for a horizontal mounted
slide to be attached allowing movement in the “Y” and Z” axis’s.
Standard options include Hand-wheel choices, position locks, and adjustable backlash lead screw nuts. Engraved dials, and digital position indicators, provide a means for accurate positioning repeatability.
Use Generic Slides – Quality manufactured Positioning Slides, as an effective and cost efficient solution to your instrumentation, manufacturing and automation systems needs.
Applications Include:
- Optics adjustments
- Laser positioning
- Adjustable sensor mount
- Positioning label dispensing equipment
- Positioning marking equipment
- Non-destructive testing
- Fixturing tooling and part locating nests
- Part scanner- mounting
- Automatic screw driver mounts
- Insertion equipment
- Fluid dispensing equipment
- Water-jet cutting
- Adjusting positioning of routing, drilling and
milling spindles and tooling
- Automation devices
|
Features:

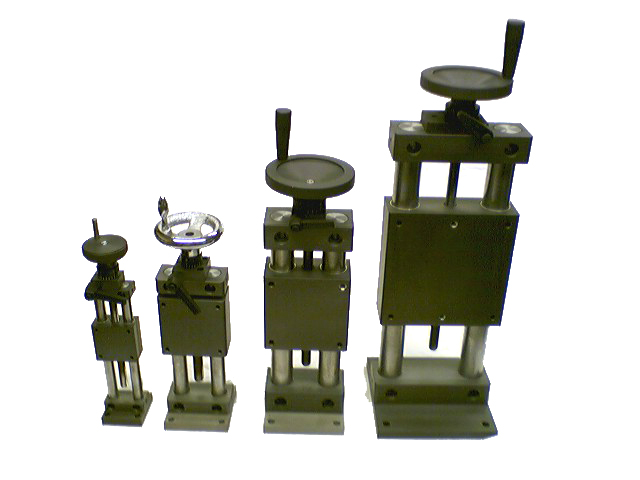

- Travel up to 72 inches
- Table Widths from 2” to 18”
- Delicate to coarse adjustments
- Smooth motion
- Y-Z Tables
|
Construction:
- Heavy section HardCote™
- Radically oversized guide rails
- Rolled thread drive screw
- Adjustable backlash drive screw nut
- High PV composite bearings
- Position Lock
|
Standard Options:
- Engraved Position Dials
- Digital Positional Indicators
- Y-Z Tables
- Long Travel Units
- Custom Table Sizes
- Custom Mounting Holes
|
