BS Series 45 Ball Slides (Dimensions & Drawings) BST Series Ball Slides(Dimensions & Drawings)

BS Series Ball Slides

Ball Slides
Ball Slides

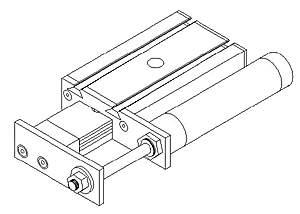

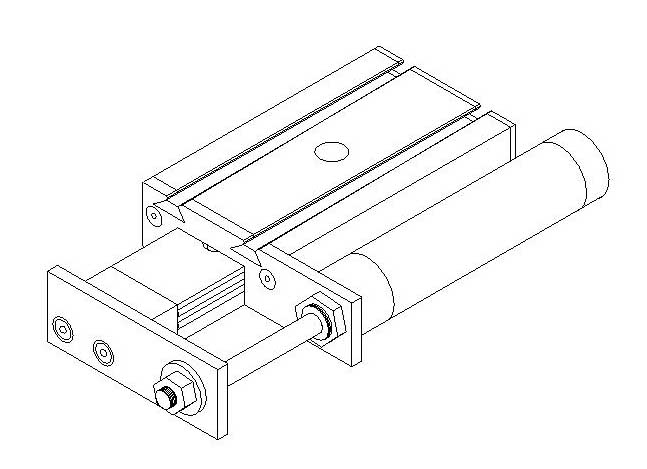

Model No. : PS45
PNEUMATIC SLIDES

Air Cylinder Slides provide a conveniently packaged solution for lift, transfer, and alignment hole provide mounting flexibility. Standard units can be combined for multi-axis motions

Ball Slides

Model No. : MS45 -

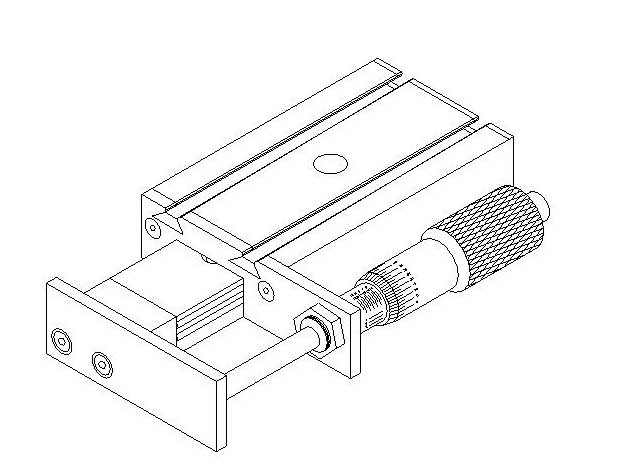

MICROMETER SLIDES


Precision micrometer adjustment allows precise and repeatable positioning of gaging, instrumentation, and optics. These slides are also used for flexible fixturing and adjustable mounting of equipment and tooling. The slide is also available in a side mounted drive configuration.

Ball Slides

Model No. : SS45 -

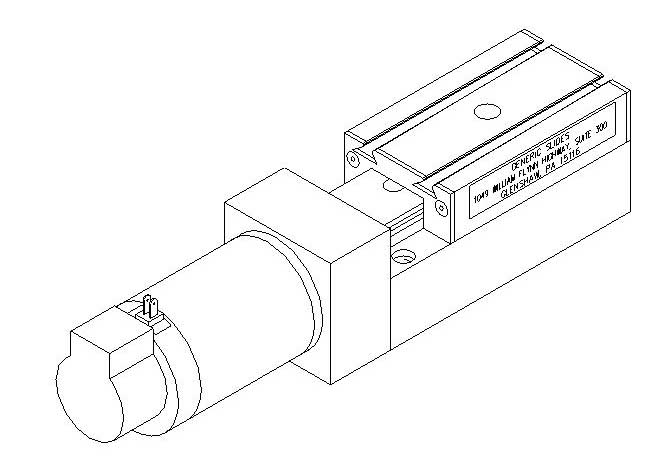

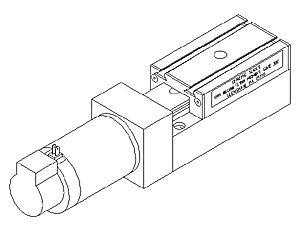

LEAD SCREW SLIDES


Standard and precision lead screw slides with optional Stepper or Servo motor, drives and controllers. These actuators can be combined to create the application specific, programmable motion system best suited for your needs.

Ball Slides

Ball Slides

 Ball Slides

Ball Slides

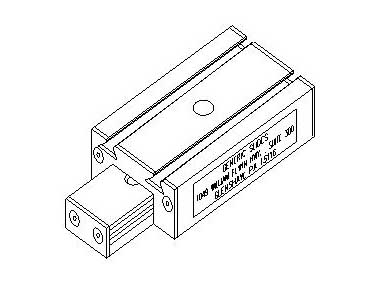

Model No: BS45 Precision
Ball Slide

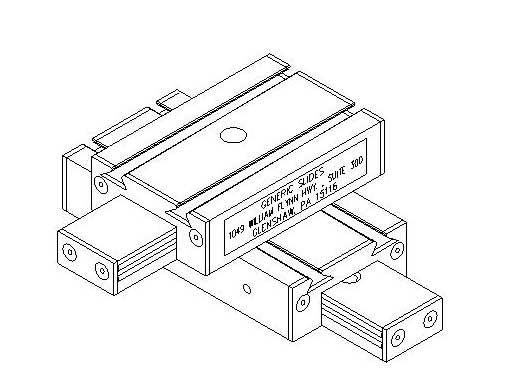

Model No: XY45 X-Y
Slide Assembly

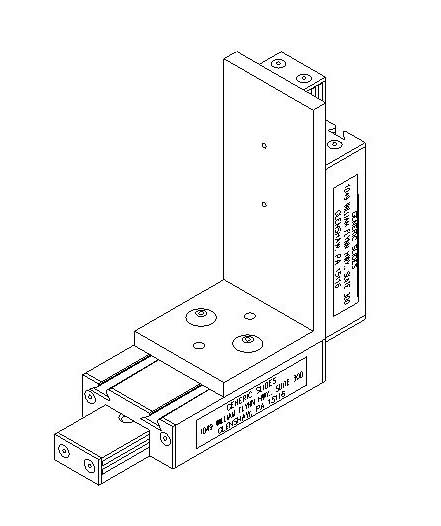

Model No: XZ45 X-Z
Slide Assembly


Ball Slides


Ball Slides

Ball Slides

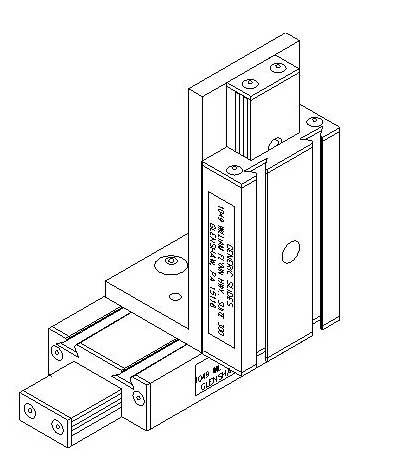

Model No: XZS45 X-Z
Slide Assembly
Side Mount Configuration

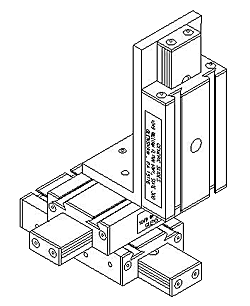

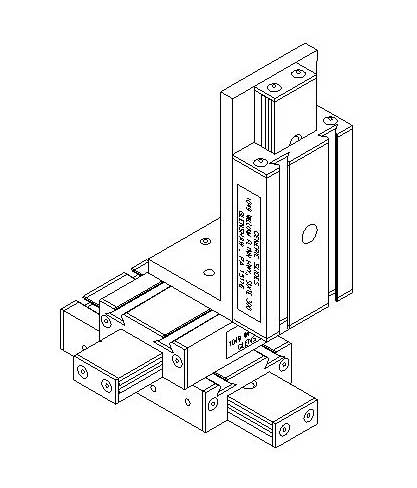

Model No: XYZS45 X-Y-Z
Slide Assembly Side Mount Configuration

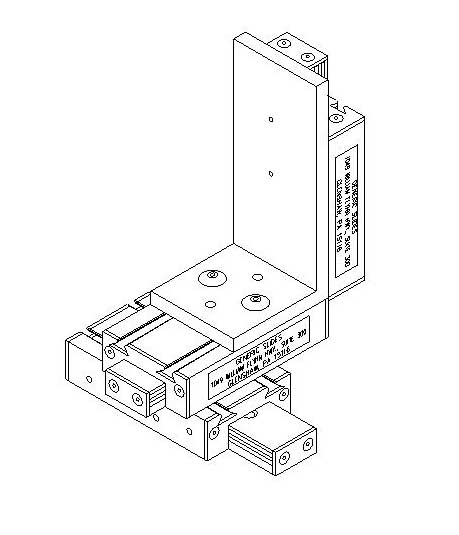

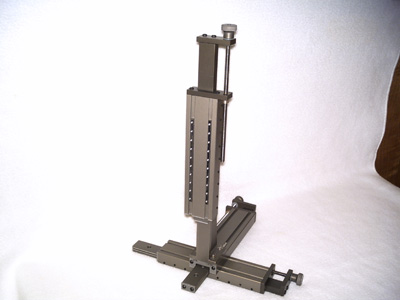

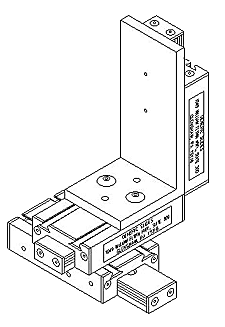

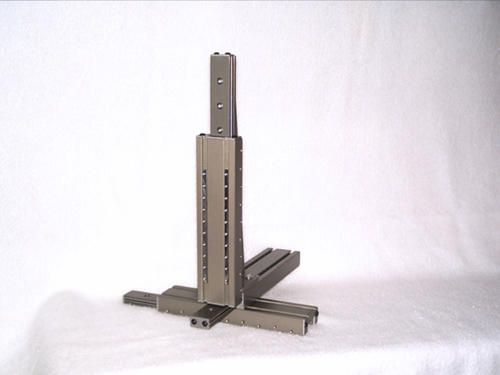

Model No: XYZ45 X-Y-Z
Slide Assembly

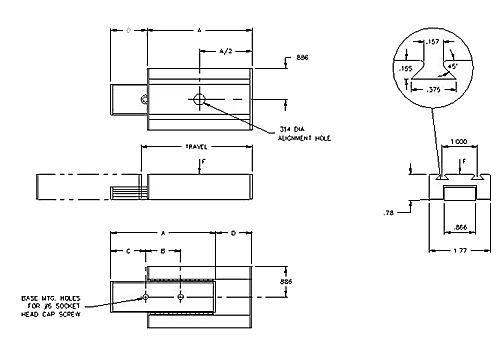

BS Series Ball Slides (Dimensions & Drawings)

Drawings and Dimensions BS 45 Series

Ball Slides

~ Custom Units Available ~

(F)

Part #
Travel
Payload
A
B
C
D
# of Mtg. Holes
BS45-1
1
28 lbs.
2.00
1.000
.500
.50
2
BS45-2
2
40 lbs.
3.00
1.000
1.000
1.00
2
BS45-4
3
60 lbs.
5.00
1.000
1.000
2.00
4
BS45-6
6
80 lbs.
7.00
1.000
1.000
3.00
6

* Travels shown are minimum travels. ** Payload value is for load applied at center of tabletop. (F = center of load.)


Dovetail Nuts for use with BS45 Series Ball Slides
Part #
Thread
DN - .13
# 6-32
DN - 4 M
4

X-Z Bracket for use with BS45 Series Ball Slides
Part #
Thread
XZBR3
# 6-32 / M4
XZBR4
#6-32 / M4

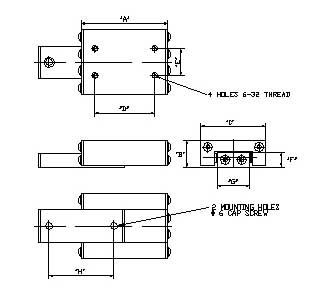

BST Series Ball Slides

Ball Slides

Part #
Travel
Payload
A
B
C
D
E
F
G
H
BST100-.5
.5
5
1.31
.5
1.00
1.250
.437
.34
.38
.875
BST100-.75
.75
10
1.56
.5
1.00
1.250
.437
.34
.38
1.125
BST100-1.5
1.5
15
2.56
.5
1.00
2.250
.437
.34
.38
2.125
BST100-2
2
25
3.56
.5
1.00
3.250
.437
.34
.38
3.125
BST100-3
3
30
4.56
.5
1.00
4.000
.437
.34
.38
3.250
BST100-4
4
35
6.00
.5
1.00
5.000
.437
.34
.38
4.000
BST150-1
1
15
2.00
.62
1.5
1.375
.625
.34
.75
1.500
BST150-2
2
20
3.00
.62
1.5
2.375
.625
.34
.75
2.500
BST150-3
3
25
4.00
.62
1.5
3.375
.625
.34
.75
3.500
BST150-4
4
30
5.00
.62
1.5
5.375
.625
.34
.75
4.000
BST150-6
6
35
6.00
.62
1.5
7.375
.625
.34
.75
5.000
BST175-1
1
20
2.00
.75
1.75
1.375
.875
.400
.875
1.625
BST175-2
2
30
3.25
.75
1.75
2.625
.875
.400
.875
2.750
BST175-3
3
40
4.00
.75
1.75
3.375
.875
.400
.875
3.500
BST175-4
4
50
6.00
.75
1.75
5.500
.875
.400
.875
4.00
BST175-6
6
65
8.00
.75
1.75
7.5
.875
.400
.875
5.00
